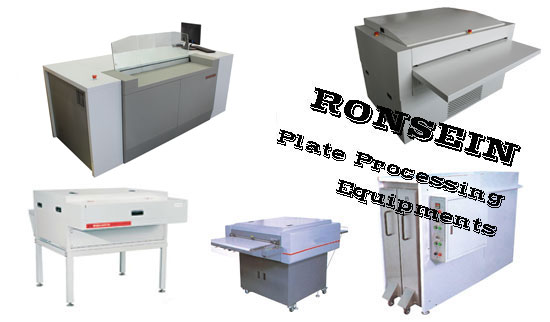

Plate Process Equipment
Equipments for effectively handling of Ronsein Printing Plates.
ROSETTER CTP Plate Setter, Plate Processor, Film Processor, Plate
Baking Oven, Plate Cleaning Machine
|

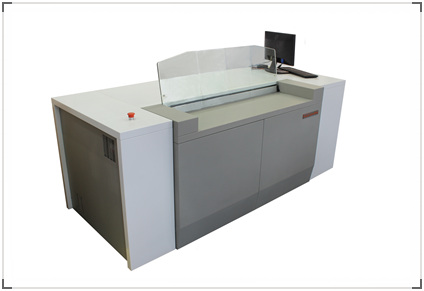

ROSETTER Thermal CTP Plate Setter |
 |
ROSETTER Technical
Specifications
|
Model
|
ROSETTER 800
|
|
328T
|
488T
|
648T
|
|
Light Channels
|
32 beams
|
48 beams
|
64 beams
|
|
Output Speed(Plate/hour)
|
16 p/h
|
22 p/h
|
29 p/h
|
|
for 1030x800mm 2,540dpi
|
|
21 p/h
|
31 p/h
|
35 p/h
|
|
for 745x605mm 2,540dpi
|
|
Light Source
|
830 nm Laser Diode
|
|
Repeatability
|
± 5 microns
|
|
Interface
|
1000 base-T
|
|
Output Resolution
|
2540 dpi (commercial printing), 1200 dpi (newspaper
printing), 3657dpi, 4800dpi is optional
|
|
Dot Reproduction
|
1%-99%
|
|
Register Accuracy
|
within 0.01mm
|
|
Plate Size
|
Max.1160x940mm, Min.400x300mm
|
|
Suitable Plates
|
Thermal CTP plate
|
|
Plate Thickness
|
0.15-0.40mm
|
|
Loading / Unloading
|
Loading: Semi-automation(Standard Set); Unloading:
Automation; Vacuum Fixation
|
|
Plate Balance
|
Automatic Balance
|
|
Environment
|
Temperature 25℃±3℃, Humidity 40-70%(Non-condensing)
|
|
Machine Dimension
|
2020 x 1000 x 930 mm(W*D*H)
|
|
Net Weight
|
1500kg
|
|
Power Supply
|
5.5 KW/220V±5%, 50/60Hz
|
|
Optional
|
vertical plate auto loader
|
|
ROSETTER UV CTP Plate Setter |
 |
Rosetter Technical
Specifications
|
Model
|
ROSETTER 800
|
|
328U
|
488U
|
648U
|
|
Light Channels
|
32 beams
|
48 beams
|
64 beams
|
|
Output Speed(Plate/hour)
|
16 p/h
|
22 p/h
|
29 p/h
|
|
for 1030x800mm 2,540dpi
|
|
21 p/h
|
31 p/h
|
35 p/h
|
|
for 745x605mm 2,540dpi
|
|
Light Source
|
405 nm Laser Diode
|
|
Repeatability
|
± 5 microns
|
|
Interface
|
1000 base-T
|
|
Output Resolution
|
2540 dpi (commercial printing), 1200 dpi (newspaper
printing), 3657dpi, 4800dpi is optional
|
|
Dot Reproduction
|
1%-99%
|
|
Register Accuracy
|
within 0.01mm
|
|
Plate Size
|
Max.1160x940mm, Min.400x300mm
|
|
Suitable Plates
|
CTCP plate and high sensitive PS plate
|
|
Plate Thickness
|
0.15-0.40mm
|
|
Loading / Unloading
|
Loading: Semi-automation(Standard Set); Unloading:
Automation; Vacuum Fixation
|
|
Plate Balance
|
Automatic Balance
|
|
Environment
|
Temperature 25℃±3℃, Humidity 40-70%(Non-condensing)
|
|
Machine Dimension
|
2020 x 1000 x 930 mm(W*D*H)
|
|
Net Weight
|
1500kg
|
|
Power Supply
|
5.5 KW/220V±5%, 50/60Hz
|
|
Optional
|
vertical plate auto loader
|
|

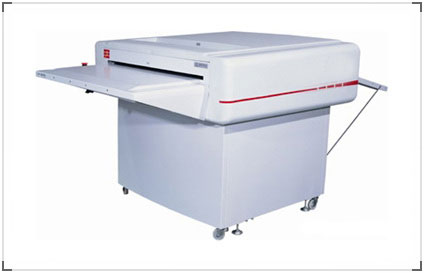

Conventional Plate Processor |
 |
Plate: positive and negative conventional plate
Plate Width: 660/880/1150/1350/1450mm
Plate Thickness: 0.15-0.40mm
Developing Time: 20-40s
Developing Tank: 25L/32L/40L
Replenish: auto
Drying Temperature: 20-60 degree C
Power: 220V(208V-240V)1φ50HZ |
|

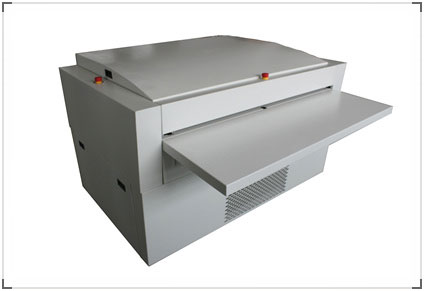

CTP Plate Processor |
 |
Plate: CTP plate and UV CTP plate
Plate Width: 880/1050/1300mm
Plate Thickness: 0.15-0.40mm
Developing Time: 20-40s
Developing Temperature: 20-40 degree C
Developing Tank: 25L/32L/40L
Replenish: auto
Drying Temperature: 20-60 degree C
Power: 220V(208V-240V)1φ50HZ |
|

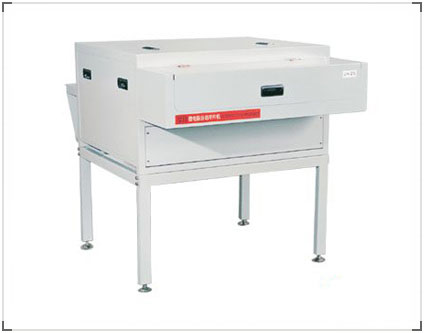

Film Processor |
 |
Roller Width: 533mm/660mm/738mm/840mm/965mm/1186mm
Film Size (min): 50 X 100
Tank, dev: 11L/13L/15L/17L/20L/25L
Tank, fix: 11L/13L/15L/17L/20L/25L
Tank, wash: 11L/13L/15L/17L/20L/25L
Film Process: Dev 310 mm, Fix 310 mm, Wash 310 mm, Dry 250
mm
Processing Speed: 50-200 cm/min
Replenishment: manual/ automatic
Dev Time: 20-60 seconds
Chemical Temperature: 20-45 °C
Dry Temperature: 20-70 °C
Power Supply: 220 V single phase 50/60 Hz 15-30A
Net Weight (kg): 145/160/180/200/220/260 |
|

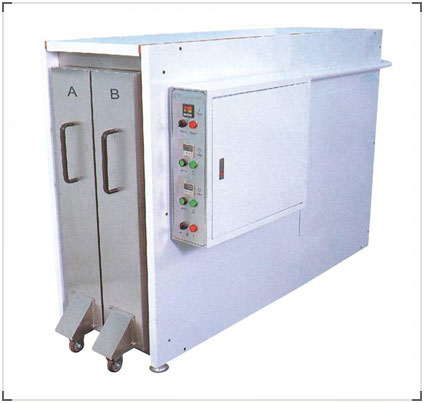

Stand Plate Baking Oven |
 |
Max Plate Size: 800*1030mm/1350*1650mm
Capacity: 8 plates
Auto Timing: 0-999 min
Temperature Adjustment: up to 250 degree C
Power: 8000W
Voltage: 380V 3 phase 50/60Hz 40A |
|

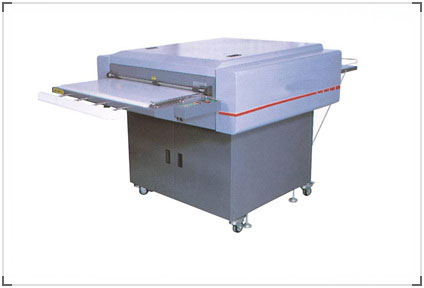

Plate Cleaning Machine |
 |
Plate: all kinds of plate, for plate cleaning and keeping
after printing
Plate Width: 660/880/1150/1350mm
Drying Temperature: 20-60 degree C
Power: 220V(208V-240V)1φ50HZ |
|
|
|
|
         |
|
