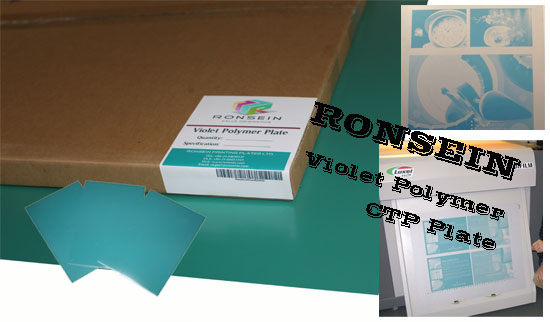

Violet Photopolymer Plate
High Sensitivity
Long Run Length
Suitable for Newspaper Printing and Commercial Printing
Compatible with Most Brand Violet CTP Platesetters
Working Principle
|
Technical Data
|
Brand |
Ronsein-VPP |
|
Label |
Ronsein label, no label or customer label |
|
Gauge
|
0.15/0.20/0.25/0.30 mm
|
|
Spectral Sensitivity
|
405 nm
|
|
Exposure Energy
|
70 - 80 mj/cm2
|
|
Resolution
|
3% - 97% at 200 lpi(newspaper printing)
2% - 98% at 200 lpi(commerical printing)
10 um
micronline output under 1800 dpi
|
|
Run
Length
|
150,000-200,000
actual run length may vary according to press, ink and paper
condition.
|
|
Plate Developing Condition
|
Recommend Developer
|
Ronsein developer or Fuji, Agfa developer
|
|
Developing Temperature
|
24 - 26 degree Celsius
|
|
Developing Time
|
15 - 17s
|
|
Preheating Temperature
|
93 - 104 degree Celsius
|
|
Detailed Information |
Safe
Light
|
amber light with brightness between 80-120 LUX, exposing
time less than 15 minutes
|
|
Shelf Life
|
12
months under recommended storage conditions (20 - 26 degree
Celsius, relative humidity: ≤60%, stacking height ≤ 1.5
meter)
|
|
|
|
|
|
         |
|
